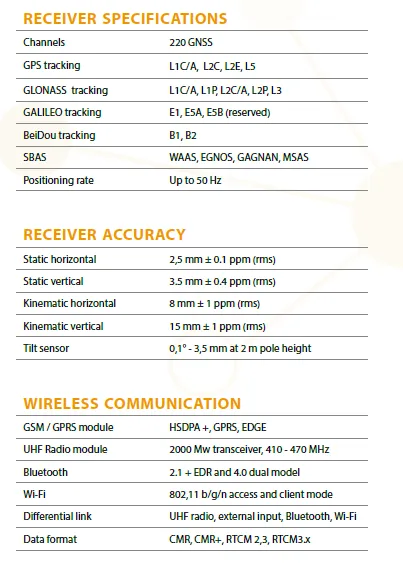

| Specifications |
| Receiver |
| Channels | 220 GNSS |
| GPS tracking | L1C/A, L2C, L2E, L5 |
| GLONASS tracking | L1C/A, L1P, L2C/A, L2P, L3 |
| GALLILEO tracking | E1, E5A, E5B (reserved) |
| BeiDou tracking | B1, B2 |
| SBAS | WAAS, EGNOS, GAGNAN, MSAS |
| Positioning rate | Up to 50 Hz |
| Receiver Accuracy |
| Static horizontal | 2,5 mm ± 0.1 ppm (rms) |
| Static vertical | 3.5 mm ± 0.4 ppm (rms) |
| Kinematic horizontal | 8 mm ± 1 ppm (rms) |
| Kinematic vertical | 15 mm ± 1 ppm (rms) |

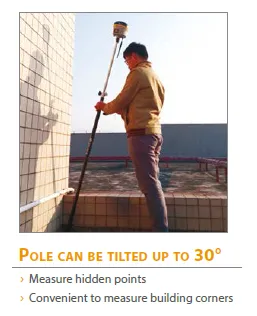

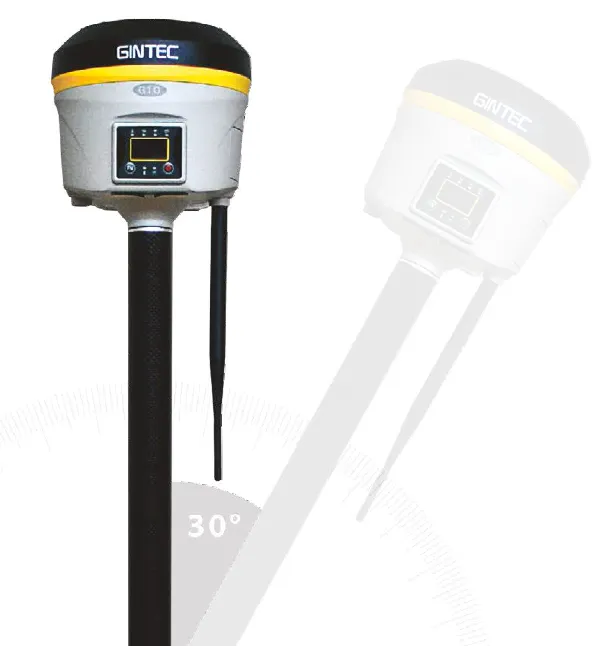

| Tilt sensor | 0,1° – 3,5 mm at 2 m pole height |
| Wireless Communication |
| GSM / GPRS module | HSDPA , GPRS, EDGE |
| UHF Radio module | 2000 mW TRANSCEIVER, 410 – 470 MHz |
| Bluetooth | 2.1 EDR and 4.0 dual model |
| Wi-Fi | 802,11 b/g/n access and client mode |
| Differential link | UHF radio, external input, Bluetooth, Wi-Fi |
| Data format | CMR, CMR , RTCM 2,3, RTCM3.x |
| Interface and Storage |
| Front panel | Power/Function button, OLED screen |
| LCD Display | 1,2 inch HD OLED screen, sunlight readable |
| Voice | iVoice intelligent technology |
| Data recording | MicroSD card, 4 GB internal memory |
| GSM/TCP/IP | Removable SIM card |
| Warranty | 18 months |
| Physical |
| Construction | Magnesium alloy body |
| Dimensions | Height 141 mm, Diam. 140mm |
| Weight | 1.45 kg with battery |
| Operating temperature | – 30 °C to 60°C |
| Storage temperature | – 40 °C to 85°C |
| Protection class | IP67 dust and waterproof |
| Humidity | 100% condensing |
| Shock | Withstand 2 m drop onto hard surface |
| Power Supply |
| Internal battery | Removable 3,4 Ah Li-ion battery |
| External power | 9 V to 22 V |
| Operating time | 10 hrs in static / 8 hrs rover mode |
