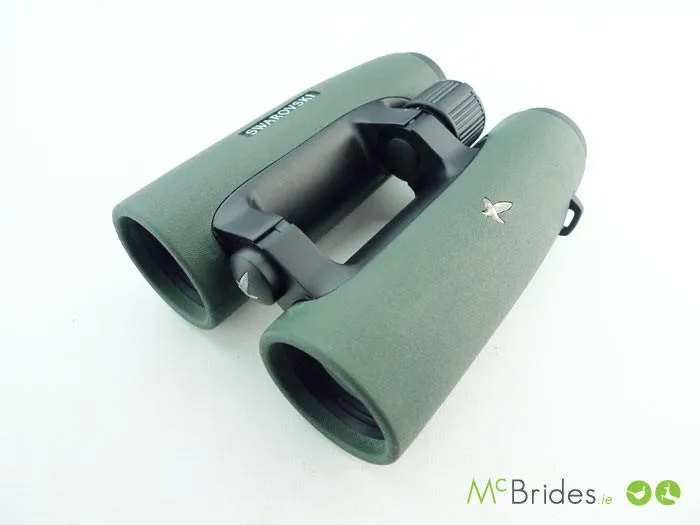

- New EL with Swarovision Technology
- Field Flattener Lenses
- Long Eye Relief
- HD lenses minimize color fringing
- Improved viewing comfort
PRECISE MEASURINGA steady hand is needed to measure distant targets precisely. The legendary EL wrap-around grip, the low and perfectly balanced weight and unique shape ensure the EL Range's good handling characteristics and the display of the exact distance to the desired target.INTUITIVELY OPERATED TECHNOLOGYOptimally placed measurement button, for immediate rangefinding readingsSmall cross hair allows precise measuring at long rangesMeasuring range 30-1,370 m / 33-1,500 ydsRange-finding accuracy ± 1 metre / 1yard above the entire measuring rangeDisplay intensity level can be fixed, or set for automatic adjustment according to ambient light levelsEasy and intuitive menu navigationUNPARALLELED ERGONOMICSEL wrap-around grip for stable focusing on very small targets at long rangesStreamlined shape provides perfect stability allowing one-handed operationPRECISE HIT WITH SWARO-AIMTopographical conditions dictate the many challenges encountered during every day hunting. To take a precise shot up or down hill requires know-how & ballistic experience. Or a precision instrument. The EL Range with SWAROAIM, equipped with a radically new angle-shot programme developed by SWAROVSKI OPTIK, enables you to accurately ascertain the correct distance for a precise shot, even in the most difficult terrain.UNIQUE ANGLE SHOOTING PROGRAMME SWAROAIMCalculates the corrected trajectory of angled shots, based on a programme developed by SWAROVSKI OPTIK, taking into consideration the measured distance and angle to the targetScanning function available for angle measurementOptional indication for displaying the distance with the angle or with the corrected rangeSimply switch the SWAROAIM readout On or Off as requiredIrrespective of calibreOPTICSHigh image quality and uncompromising transmission values for bright and high contrast imagesClose-range observation distance of 16.4 ft (5 m)Widest field of view in its class, due to wide-angle ocular (61°)Maximum exit interpupillary distance (better visual comfort, especially for eyeglass-wearers)Lockable diopter correctionOptimized roof prism with P coatingSWAROBRIGHT, SWARODUR, and SWAROTOP optimization based on laser technologySWAROCLEAN makes it easier to clean stubborn stains, such as tree resin or water spotsMECHANICSNon-slip focusing wheel can also be operated while wearing glovesIndividually adjustable winged eyecups made from hypoallergenic materialDirtand dust-repellentWaterproof to 13 ft (4 m)No fogging due to nitrogen fillingRugged, shock-proof, and non-slip rubber reinforcementEasily accessible battery compartmentDESIGNLegendary wrap-around gripPerfect balance, lowest weight in its classErgonomic placement of controlsErgonomic shape provides stability and permits one-handed operationELECTRONICSOptional angled-shot program SWARO-AIMSmall reticle for precise measurements for long distancesEasy-to-read LCD display with 5 individually adjustable brightness levelsAutomatic brightness adjustmentPRODUCT SPECIFICATION
| Dimensions | H: 8.1cm x W: 11.7cm x D: 16.0cm |
|---|---|
| Weight | 895 g |
| Magnification | 10 x |
| Objective Lens Diameter | 42 mm |
| Exit Pupil Diameter | 4.2 mm |
| Exit Pupil Distance | 17.3 mm |
| Linear Field of View (@ 1000m) | 110 m |
| Angular Field of View | 6.3 degrees |
| Shortest Focusing Distance | 5 m |
| Dioptric Compensation (±) | -/ 5 |
| Interpupillary Distance | 56-74 mm |
| Twilight Factor | 20.5 |
| Waterproof | Yes |
| Fogproof | Yes |
| Rubber Armoured | Yes |
| Prism | Roof |
