Faster Recovery
Fast recovery means more hot water and fewer cool water cycles. Suburban uses a copolymer insulation jacket specially moulded to fit the tank which does a better job of retaining heat than some other models.

More Convenience

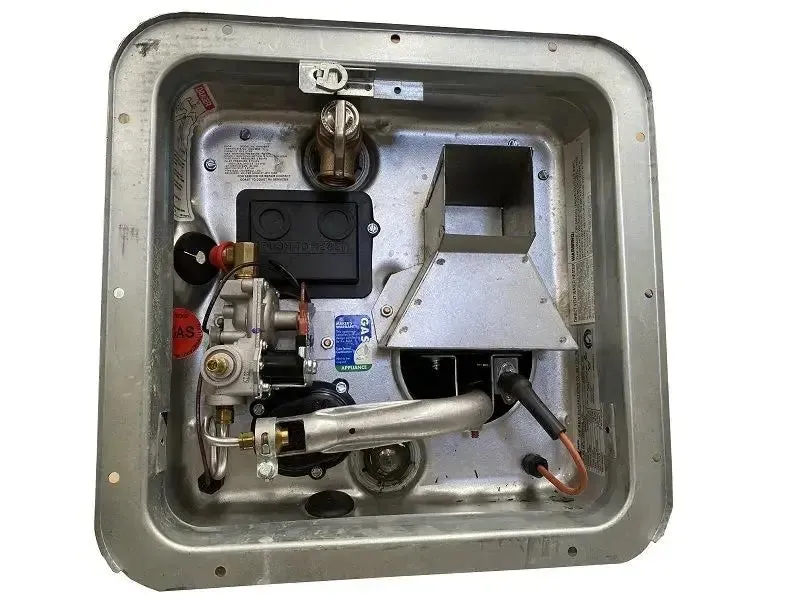

All Suburban water heaters are designed for easy installation, operation and maintenance. The limit switch, reset button and on/off electric element rocker switch are conveniently located in a housing behind the removable outer door. The electric heat element and combination drain plug/anode rod are also located there.

Longer Life
Heated water attacks all metals, but not porcelain. That’s why Suburban uses a porcelain-lined, steel water heater tank with an anode rod to “absorb” the electrolytic action - just like your water heater at home.

Regulation Compliant
Suburban Water Heaters carry the following approvals:
WaterMark Certification
Australia and New Zealand
Gas Safety Certification Regulatory Compliance Mark (RCM)

• Capacity: 20.3 Liters
• Max working pressure: 700Kpa/150Kpa
• Hourly gas consumption: 8.7mj/hour
• Test point pressure: 2.63Kpa
• Jet orifice size: 0.84mm
• Type of heating medium: Universal LPG/ 240Volt
• Recovery: 40Lt/hr 45°C rise
• Size of inlet 3/8”SAE

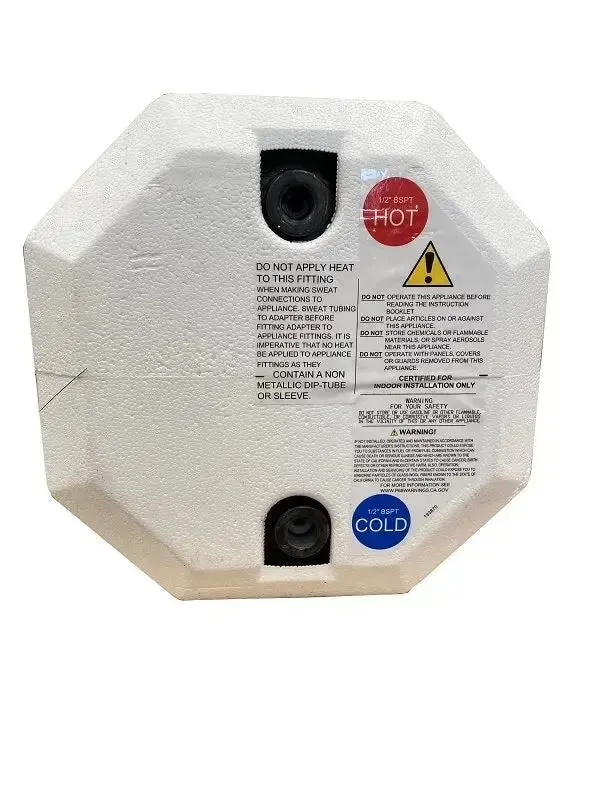

• • Cold water inlet is 1/2 inch female BSP.
  • Hot water outlet is 1/2 inch female BSP.

• For auto gas ignitor: 12Volt DC
• For models with 240V heating element: 240Volt – 50HZ AC
• Element rating: 1440 Watts – 6 Amp

WIDTH: 320mm
HEIGHT: 320mm
DEPTH: 500mm

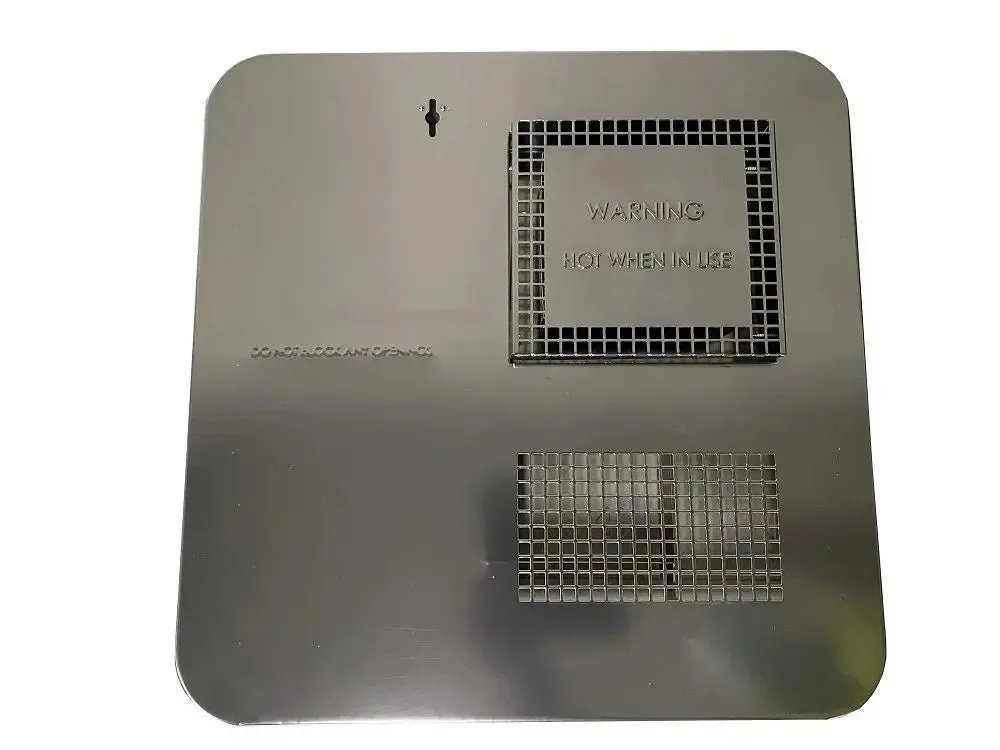

Includes service door

Location of hot water inlet is 70mm from top dead center.
Location of cold water inlet is 55mm from bottom dead center.
Location of flue outlet is 95mm from RH top edge of unit.
Location of gas inlet connection point is 40mm in from the left hand edge of the control housing.
