RAM® No-Drill™ Laptop Mount for 94-01 Dodge Ram 1500 & More

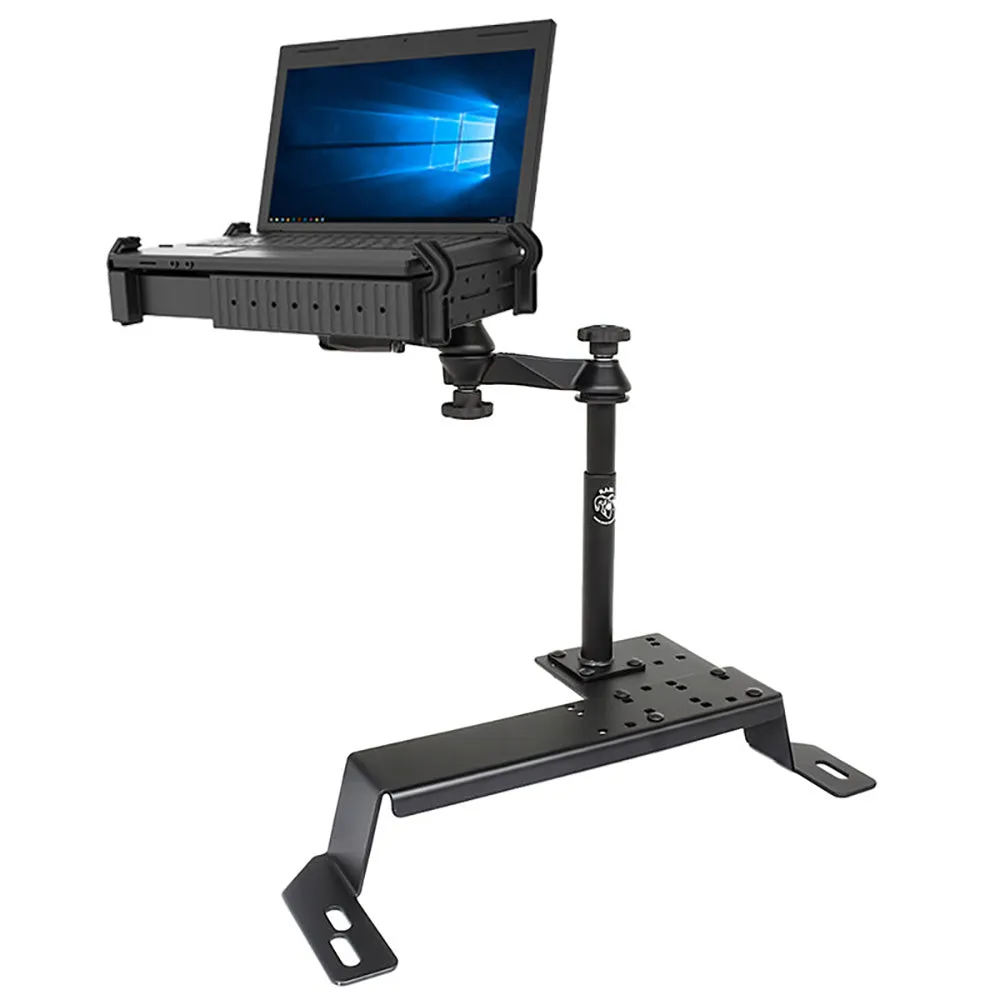

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing passenger side seat rails hardware. This configuration provides a telescoping feature with upper and lower poles that allow users to set the mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. The patented rubber ball and socket joint provide additional adjustment as well as shock and vibration isolation.

The RAM Tough-Tray™ is spring-loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with a rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on the perimeter of the tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Specifications:

• Hardware Included: Assembly hardware
• Tray Dimensions Width Range: 10" - 16"; Side Arm Clamp Height: 0.5" - 1.75"; Tray Depth: 10"; Tray Thickness: 2.125"
• Hole Pattern: Seat Bolt Distance: 24.25" center to center (front right driver bolt, front left passenger bolt)
• Ball Size: C Size (1.5")
• Materials: Powder-coated steel; Marine grade aluminum; High-strength composite
• Weight: 23.2 lb.

Components:

• RAM® No-Drill™ Vehicle Base for the 94-01 Dodge Ram 1500 More (RAM-VB-127)
• RAM® Tele-Pole™ with 8" & 9" Poles, Double Swing Arms & Round Plate (RAM-VP-SW1-89)
• RAM® Tough-Tray™ Spring Loaded Laptop Tray (RAM-234-3)

Compatible Vehicles:

• Dodge: Ram 1500 (1994-2001), Ram 2500/3500 (1994-2002), Ram 2500/3500 Chassis Cab (1994-2002)
