- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements

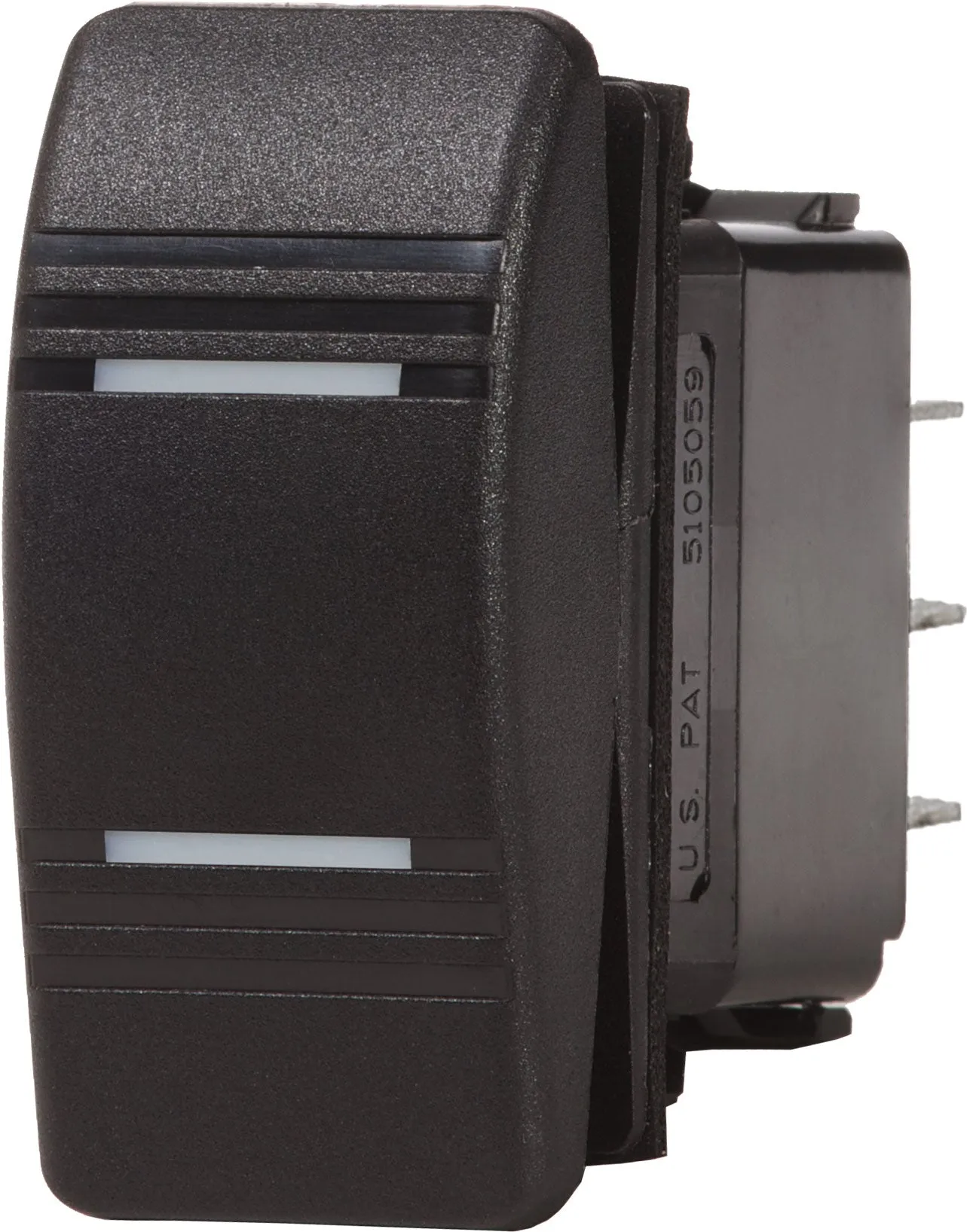

| Specifications | |
|---|---|
| Action | ON-OFF-ON |
| Pole / Throw " style="vertical-align: top; font-weight: inherit; font-family: inherit; font-style: inherit; font-size: 12.96px; outline: 0px; margin: 0px;"> | DPDT |
| Actuator Color | Black - Contura III |
| Common Applications | combining nav lights or anchor light with shared bulb |
| Maximum Amperage | 20A @ 12V 15A @ 24V |
| Amperage Operating Current | 18mA (LED) |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Actuator Position to Light LED | ON |
| Embedded LEDs | 2 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09lb (0.04 kg) |
| Weight | 0.09lb (0.04 kg) |
